Showing all 2 results
-
“Doortect” Intumescent Fire Door Upgrades
Only available in the Western Cape Province.
Legislation in respect of the compartmentalisation and spread of fire is becoming increasingly stringent in respect of new build and renovations. Dorwerx can provide either factory applied or site applied intumescent coating service for architectural timber and solid timber doors. The ‘Doortect’ intumescent coating will provide a 30 minute fire barrier to the timber or timber door in respect of fire. The coating can be applied to raised and fieled panel doors with a minimum thickness as low as 14mm.
A sample of our ‘Doortect’ solution has been tested by SABS (test report number FPE/85017/08F). The test sample was exposed to fire in accordance with SANS 10177: Part 2-2005 “Fire Resistance test for building elements’. The test resulted in a 63minute rating in respect of Stability, Integrity and Insulation. A copy of the test report can be supplied on demand. Materials are imported and are tested internationally to both EN 13823 and BS476: Part 6/7 1987.
We can provide either a white intumescent coating for enamel top coat, applied on site by others, or a clear intumescent coat for varnish top coat again applied by others. The intumescent material is hydroscopic (draws and retains moisture), so must have a protective top coat applied after application of the ‘doortect’ product.
-

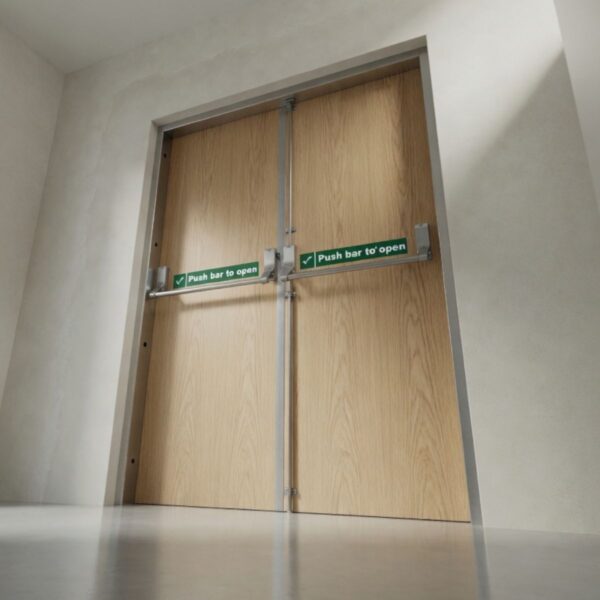

Single or Double Fire Doors
R0.00Only available in the Western Cape Province.
Dorwerx will Supply and Install bespoke 60 (class A) or 120 (class B) Single or Double Fire doors and frames. Frames can be manufactured to suit differing wall thicknesses and fitting methods, from Partition wall to 230 brick. Frames can be ‘built in’ or ‘bolt in’, depending on application. All door leaves and frames will be supplied with metal door tag, to clearly identify fire rating and will comply with all local legislation.
Dorwerx offer a free survey service and will assist in specification, if required.
Classes of Fire Doors
Class E
Dorwerx can supply our Class E, 30 minute doors, with both timber or steel frames. The doors can be made with all differing veneers and finishes, including grooving to match that of the internal doors in the vicinity.
Class A
Dorwerx Class A, 60 minute doors can also be supplied with both timber and steel frames. These doors can also be supplied with a wide range of different veneers and grooves.
Class B
Dorwerx Class B, 120 minute, doors can only be supplied with steel frames. The range of finishes on these doors are almost limitless as well.
Class D
Class D, 120 minute, doors can also only be supplied with steel frames. These door are cladded on both the inside and outside with GMS cladding.
